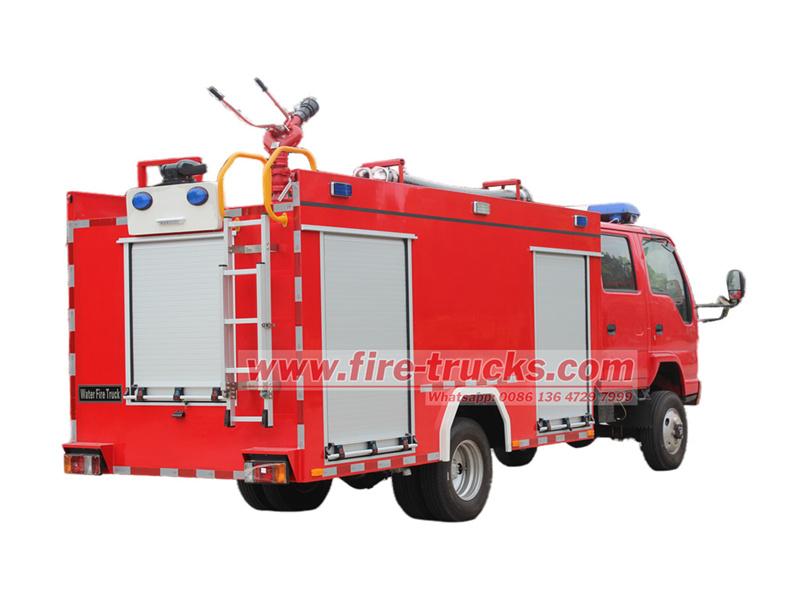

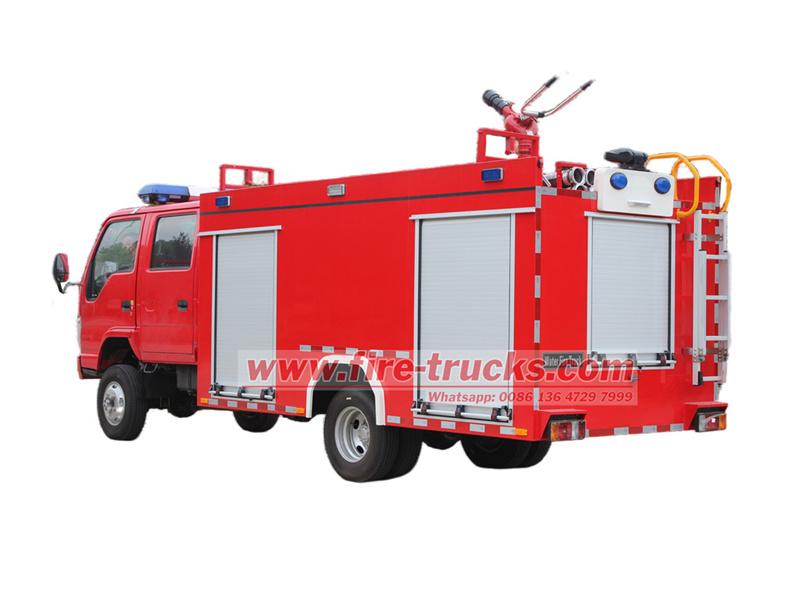

รถดับเพลิงขนาดเล็ก ISUZU 4x4

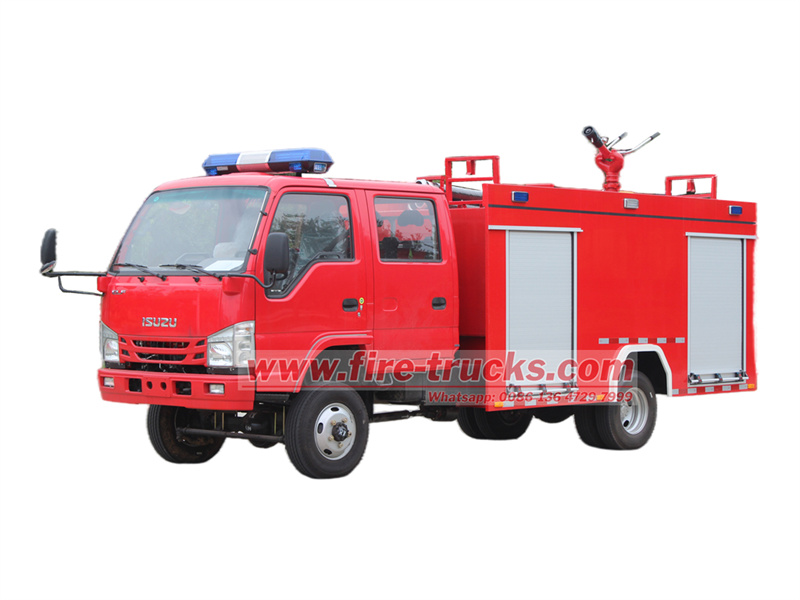

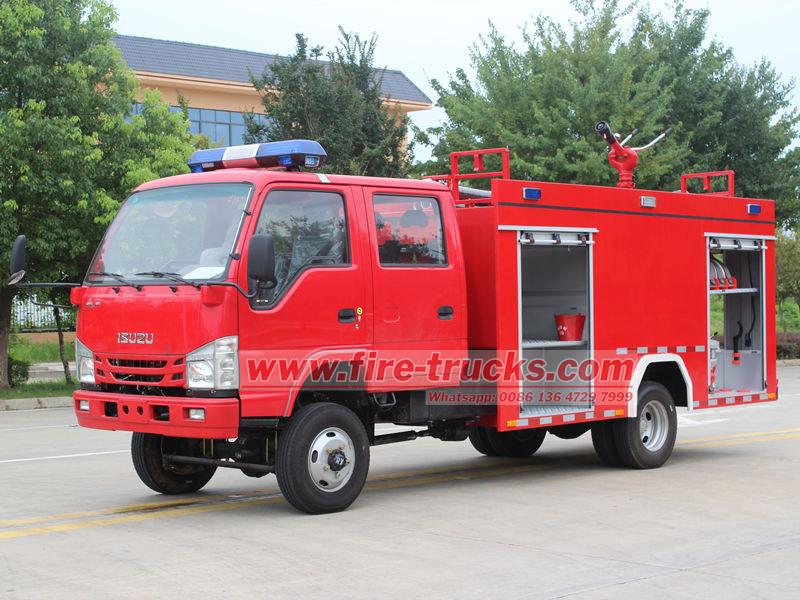

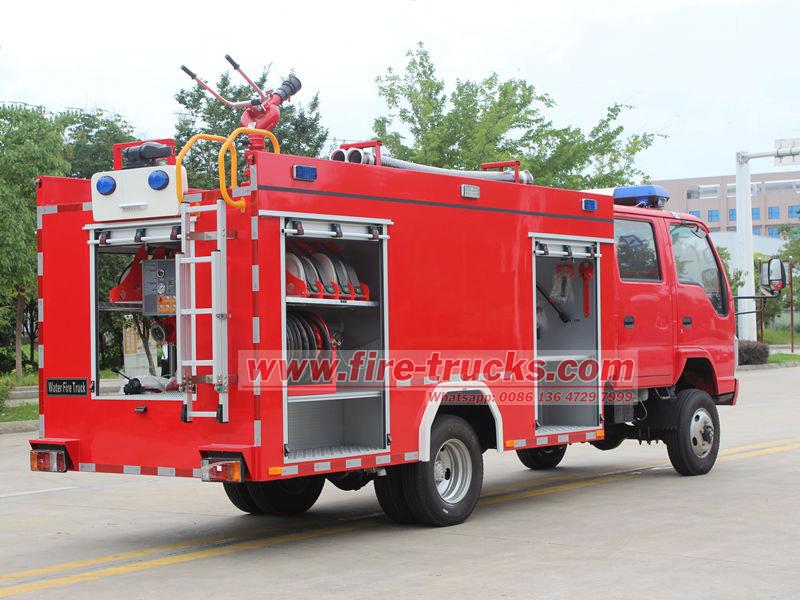

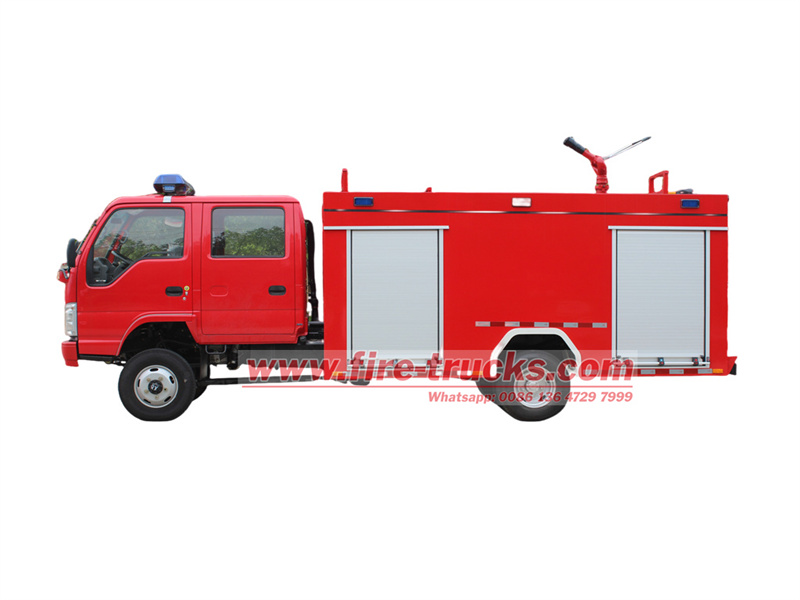

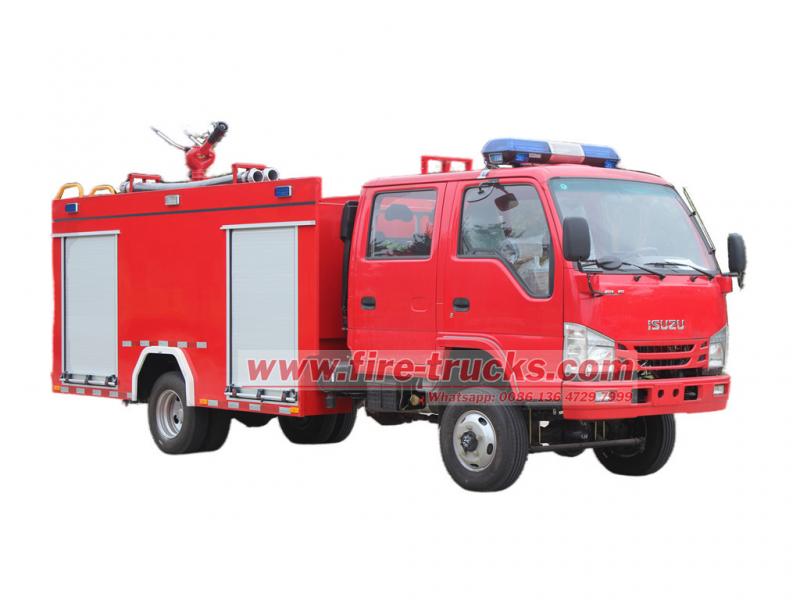

ISUZU 4 × 4 mini pumper fire truck specifications

Dimensions

Length/mm

6220

Width/mm

1960

Height/mm

2800

Wheelbase/mm

3360

Front/Rear Thread/mm

1504/1425

Approach/Departure Angle/°

24/13

Front/Rear Overhang/mm

1130/1735

Chassis

Brand

ISUZU

Driven Mode

4x4, LHD

Front Axle Load/kg

2500

Rear Axle Load/kg

4800

Braking System

Air Brake

Tyre

7.00R16, 6 pcs and one spare

Gear Box

ISUZU MSB, manual, 5 forward and 1 reverse gears

Max Speed/ km/h

95

GVW/kg

7300

Cab

Four doors, double cab , 3+3 passengers

Engine

Model

4KH1CN6LB

Horsepower/HP

120

Output/KW

88

Displacement/L

3.0

Max Torque

290N·m

Emission standard

Euro 6

Fire Fighting System

Water Tank

Tank Capacity

3000 L

Material

Carbon Steel

Thickness

Baseboard and Endplate: 4mm
Side plate and top plate: 3mm

Structure

Welded Type, Anti-swing Plate Inside
-One Manhole, with fast lock & unlock device
-One Overflow Device
-One Level Indication Device
-One Drain Hole, controlled by manual valve

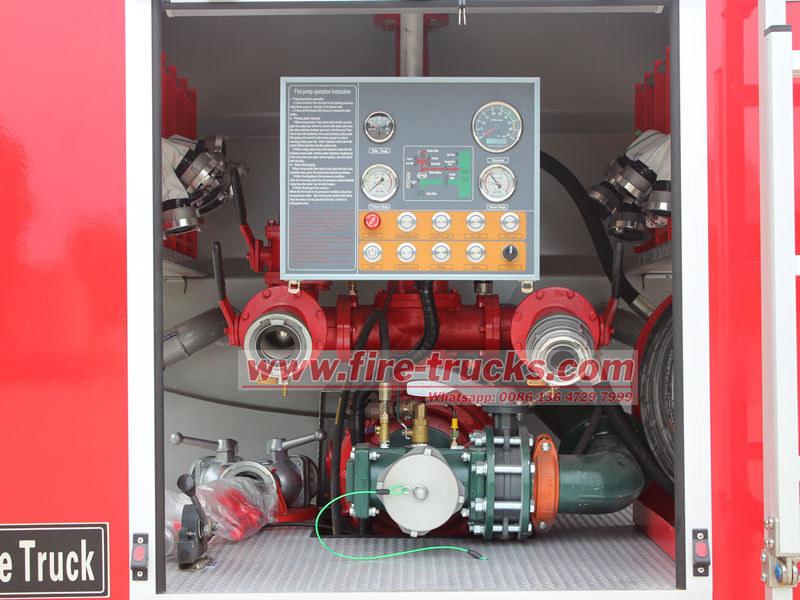

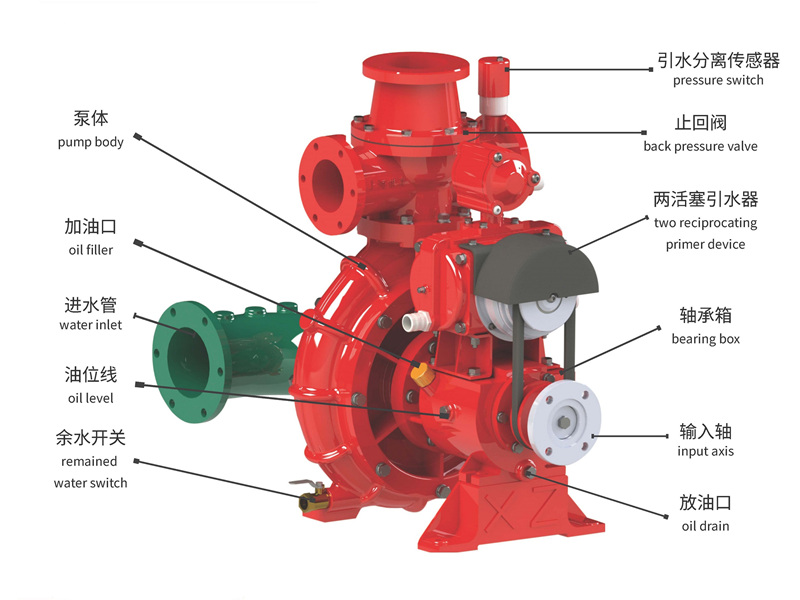

Fire Pump

Model

CB10/30

Flow/ L/s

20

Pressure/MPa

1.0

Water Suction Time/s

Less than 50s (when height is 7m)

Installation Mode

Rear-mounted

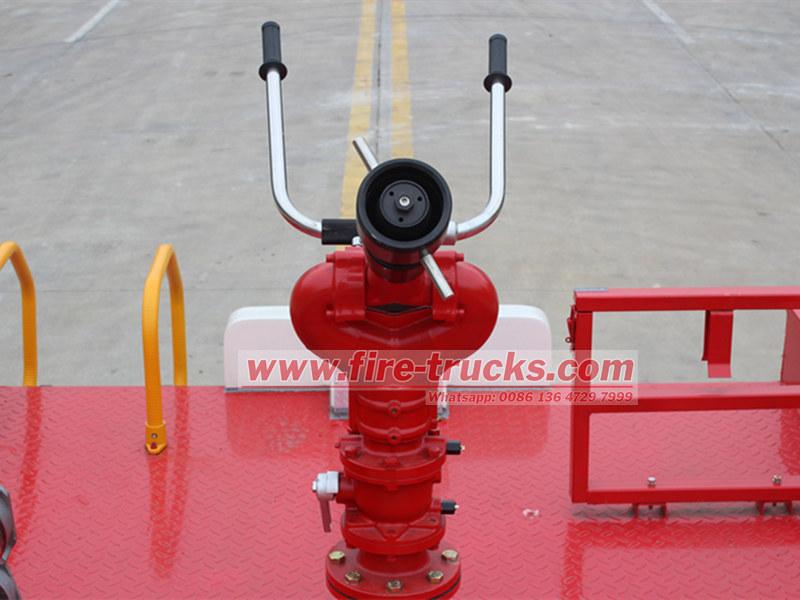

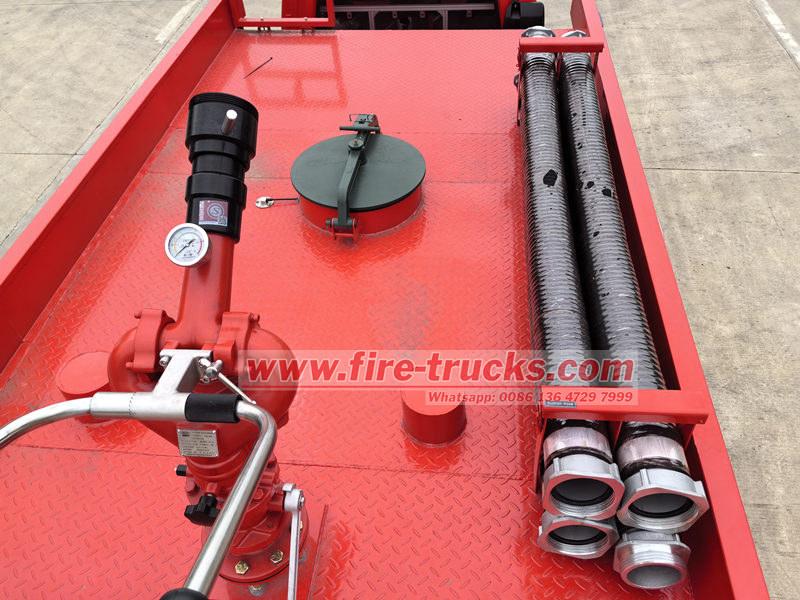

Fire Monitor

Model

PS8/30W

Rated Working Pressure

0.8 Mpa

Max. Working Pressure

1 Mpa

Flow

30 L/s

Range

More than 65m

Horizontal Rotating Angle/°

360

Pitching Rotating Angle/°

-30~80

Operation Mode

Manual

Pipeline Systems

Material

High quality seamless steel pipe

Water injection pipeline

There is a DN65 water injection port on each side of the water tank, and a DN65 pipeline is set in the pump room for the water pump to inject water into the tank.

Outlet pipe

There is a DN65 normal pressure outlet on each side of the pump room, with a stop valve and a cover.

Cooling Water Pipeline

Equipped with stainless steel ball valve

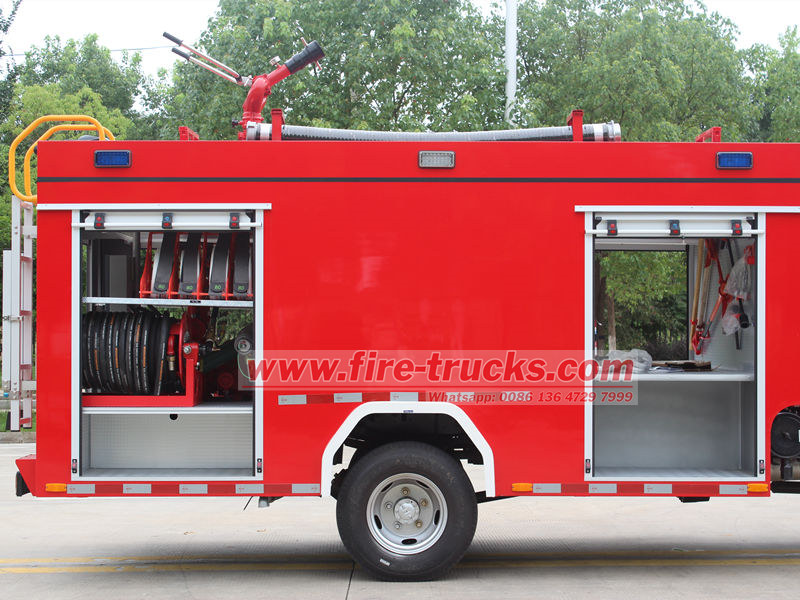

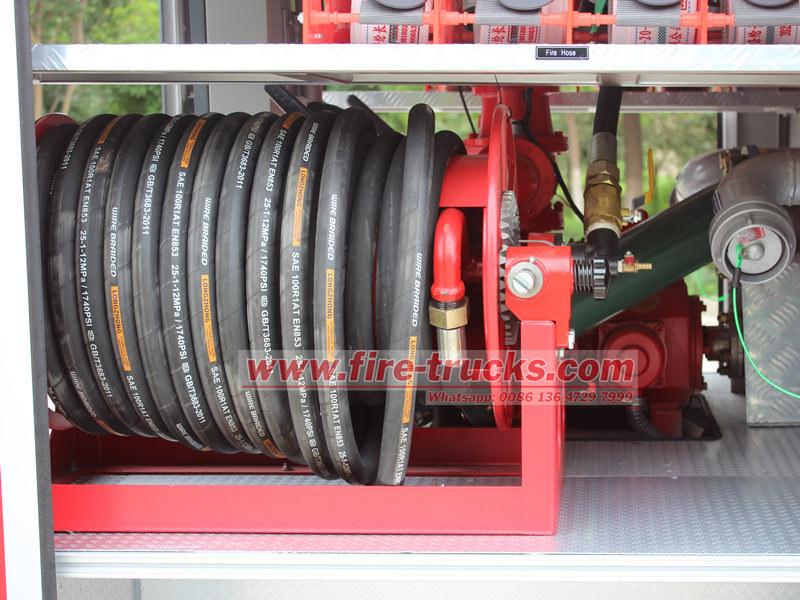

Hose reel

Equipped with high quality hose reel with 30m high pressure pipe for water jetting
